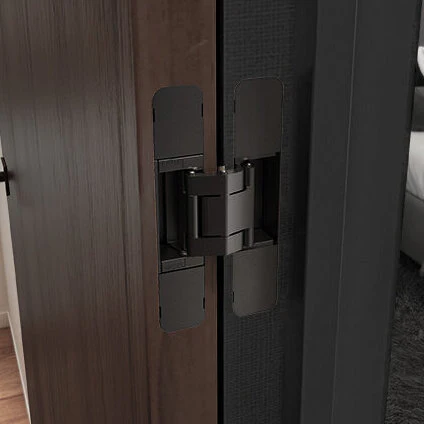

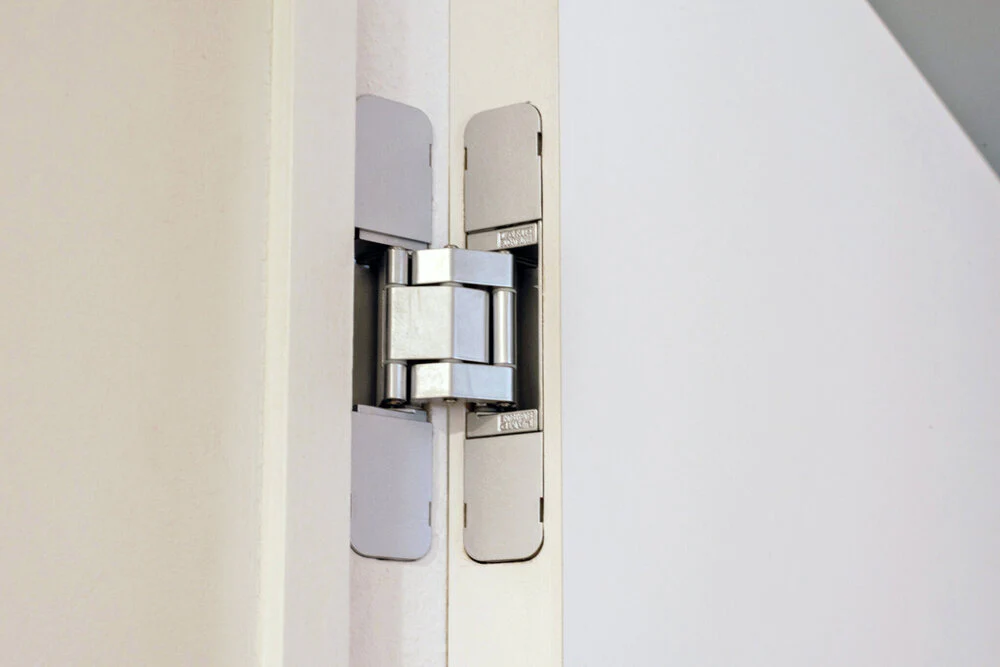

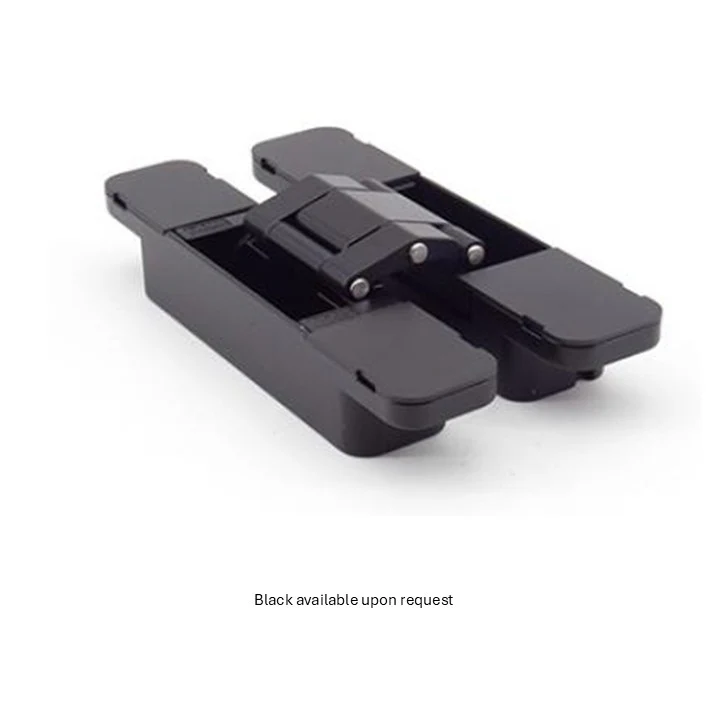

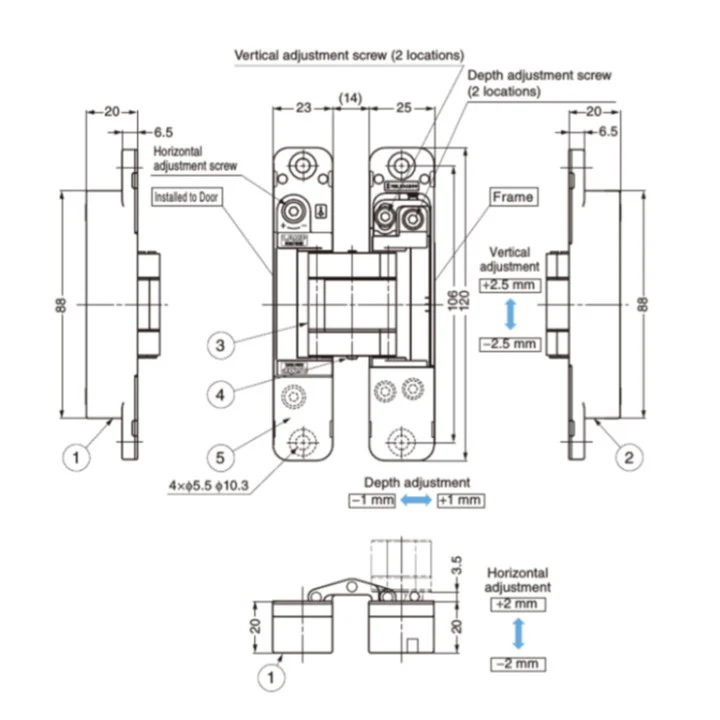

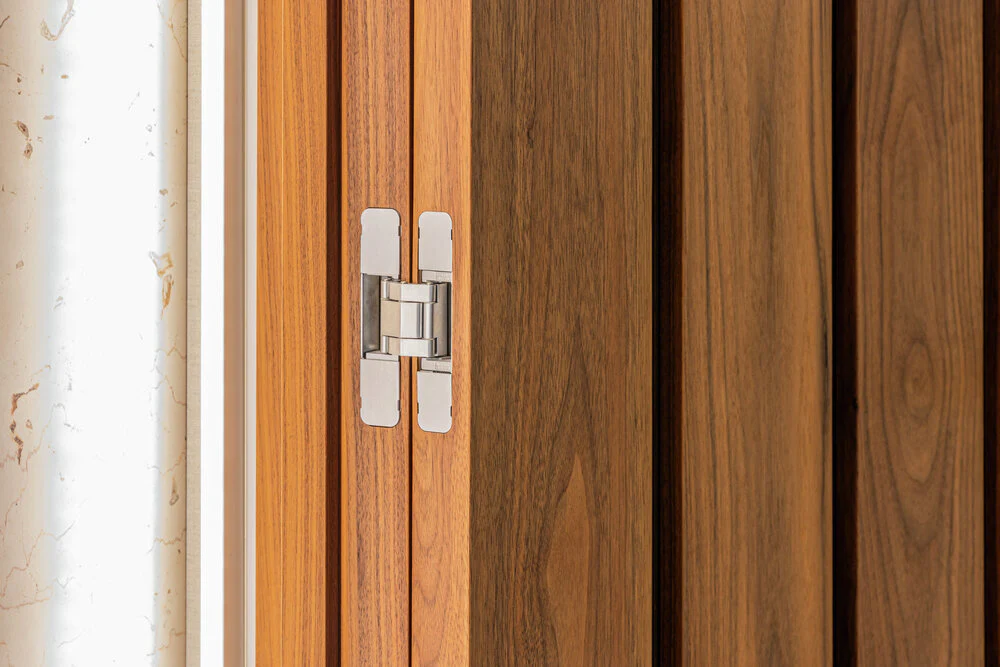

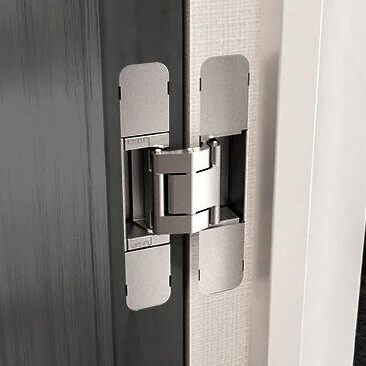

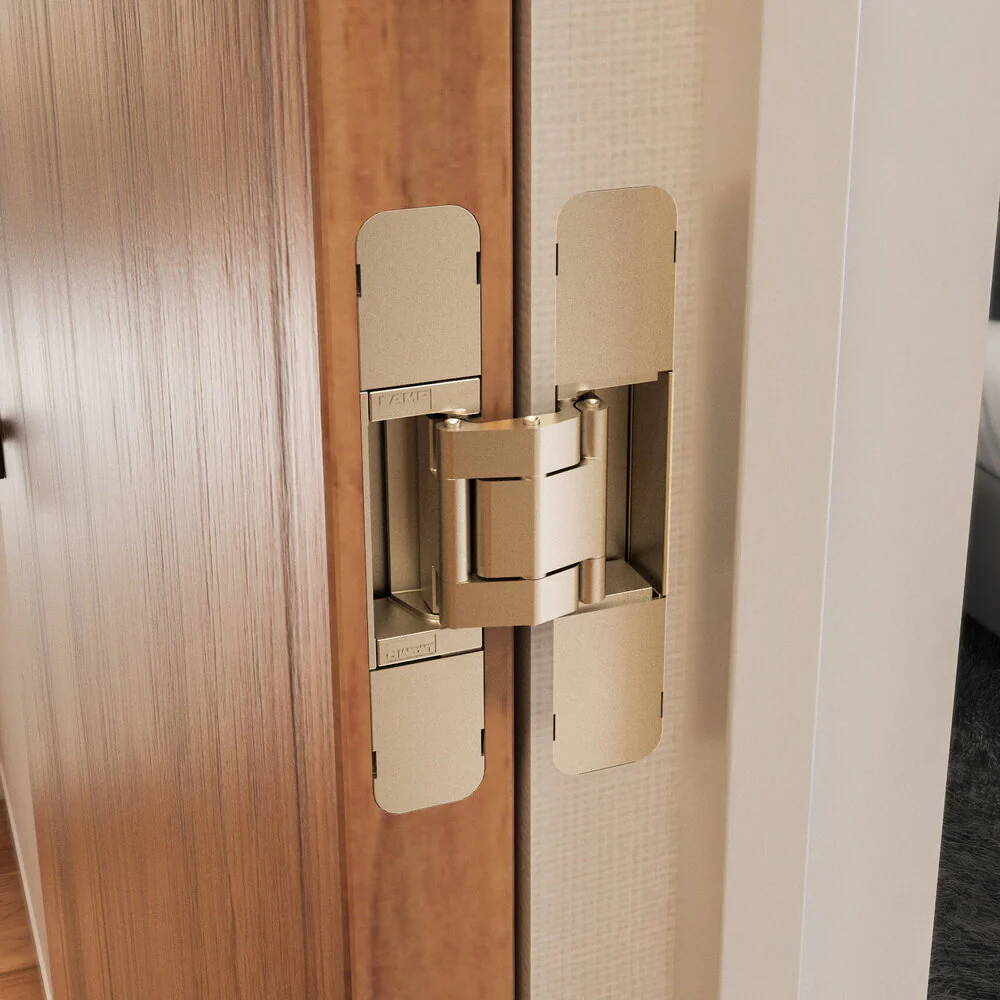

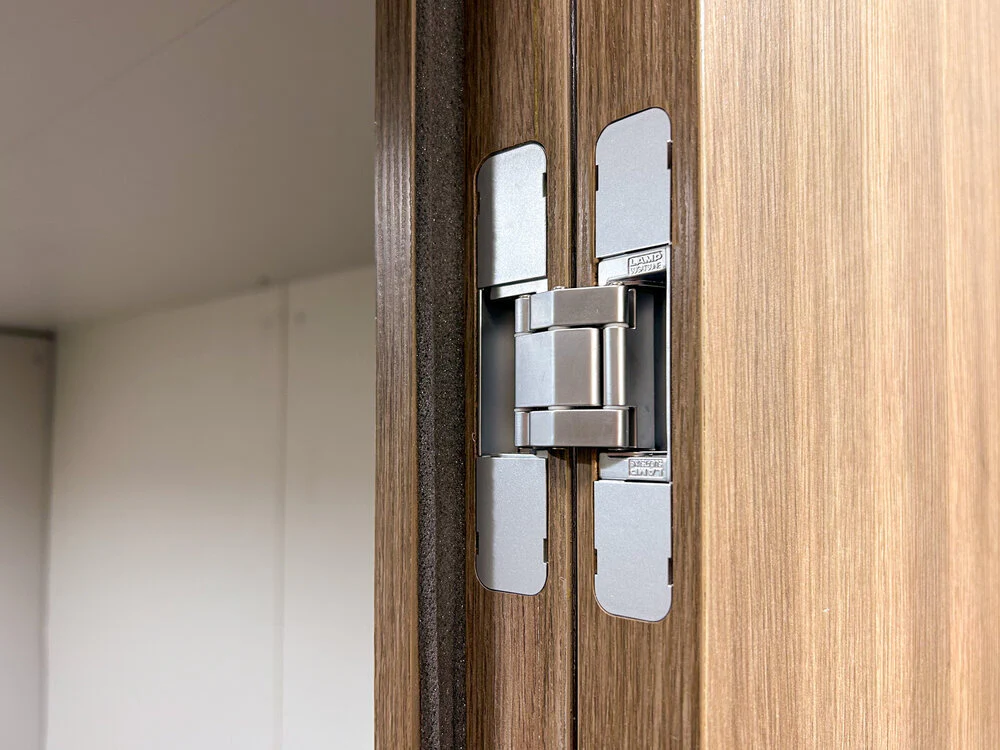

Concealed Hinge | 3-Way Adjustment | Up to 40kg Doors (Min 29mm)

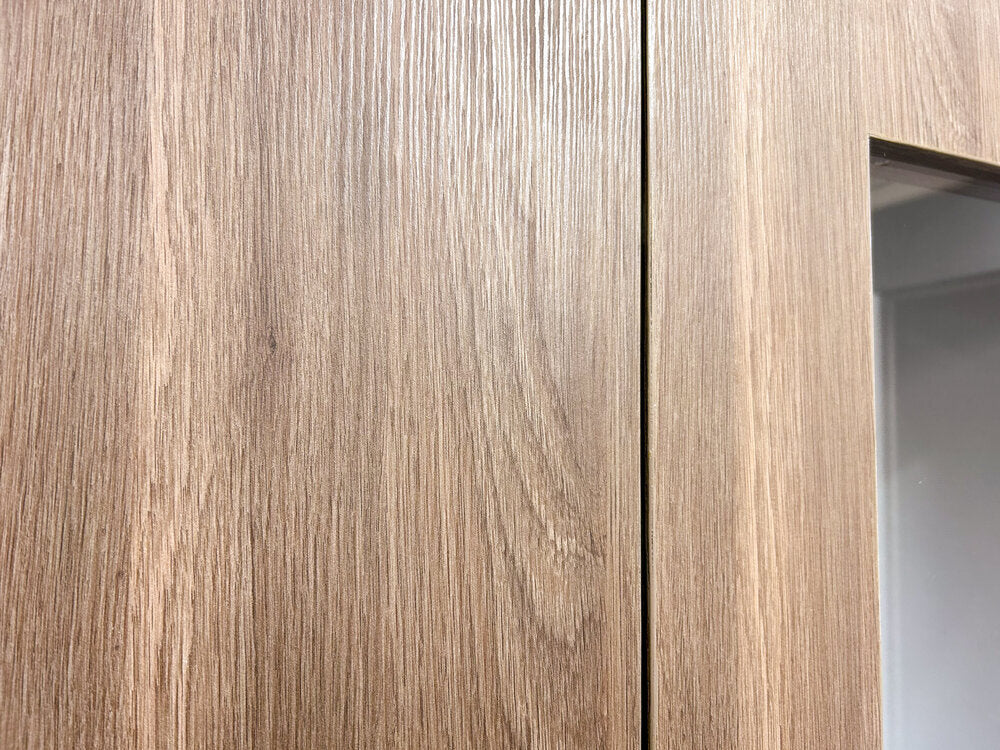

Designed for heavier internal doors and premium joinery applications, this concealed hinge supports increased door weight while retaining smooth operation and invisibility when closed.
Suitable for flush doors, panelled doors, and architectural joinery where durability and precise alignment are critical. Ideal for high-end residential or light commercial interiors.
Specification:
- Maximum Door Weight - Up to 30 kg with 2 hinges / Up to 40 kg with 3 Hinges
- Minimum Door Thickness - 29 mm
- Maximum Door Width - 900 mm
- Maximum Door Height - 2400 mm
More detailed information can be found in the Technical Data Sheet and Installation Manual.
Original: $55.70
-65%$55.70
$19.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Designed for heavier internal doors and premium joinery applications, this concealed hinge supports increased door weight while retaining smooth operation and invisibility when closed.
Suitable for flush doors, panelled doors, and architectural joinery where durability and precise alignment are critical. Ideal for high-end residential or light commercial interiors.
Specification:
- Maximum Door Weight - Up to 30 kg with 2 hinges / Up to 40 kg with 3 Hinges
- Minimum Door Thickness - 29 mm
- Maximum Door Width - 900 mm
- Maximum Door Height - 2400 mm
More detailed information can be found in the Technical Data Sheet and Installation Manual.
