Concealed Hinge | 3-Way Adjustment | Up to 12 kg Doors (Min 19 mm Thickness)
A compact concealed hinge designed for lightweight timber doors and cabinetry. Ideal for small cabinet doors, wall units and lightweight interior joinery where a completely hidden hinge is required. Offers three-way adjustment for precise alignment during installation and fine tuning after hanging. Suitable for projects prioritising clean detailing and minimal visible hardware.
Available in Black, Silver or Champagne Gold.
Specification:
- Maximum Door Weight - Up to 9 kg with 2 hinges / Up to 12 kg with 3 Hinges
- Minimum Door Thickness - 19 mm
- Maximum Door Width - 600 mm
- Maximum Door Height - 1200 mm

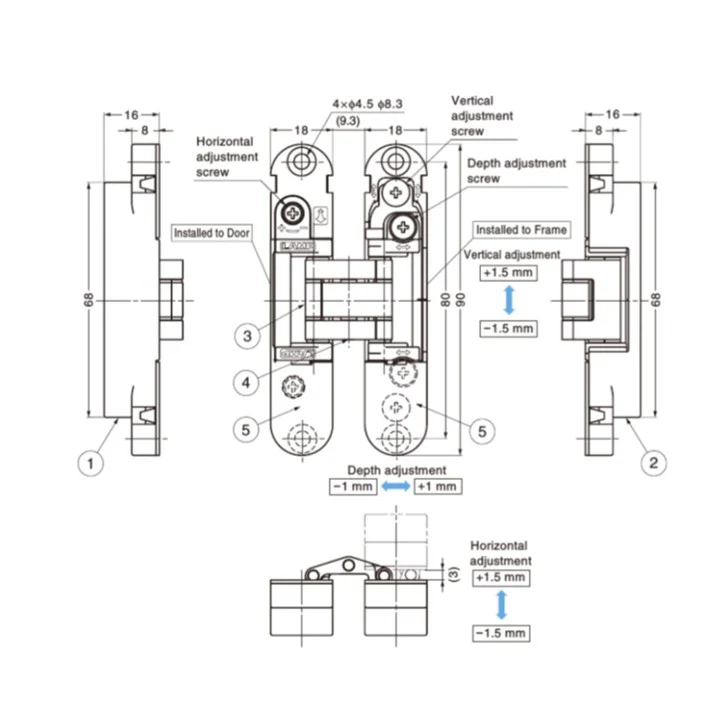

More detailed information can be found in the Technical Data Sheet and Installation Manual.
Original: $51.46
-65%$51.46
$18.01Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A compact concealed hinge designed for lightweight timber doors and cabinetry. Ideal for small cabinet doors, wall units and lightweight interior joinery where a completely hidden hinge is required. Offers three-way adjustment for precise alignment during installation and fine tuning after hanging. Suitable for projects prioritising clean detailing and minimal visible hardware.
Available in Black, Silver or Champagne Gold.
Specification:
- Maximum Door Weight - Up to 9 kg with 2 hinges / Up to 12 kg with 3 Hinges
- Minimum Door Thickness - 19 mm
- Maximum Door Width - 600 mm
- Maximum Door Height - 1200 mm
More detailed information can be found in the Technical Data Sheet and Installation Manual.
